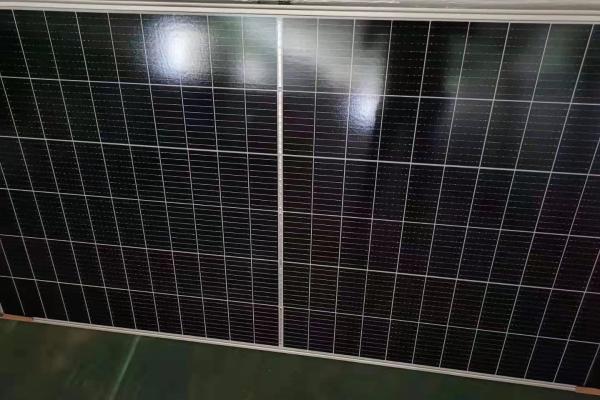

400w Folding Solar Panels For Camping 9BB 144

Name: 400w Folding Solar Panels For Camping 9BB 144
Brand: Finergy Tech
Price: 0.22 USD

China 400w Folding Solar Panels For Camping 9BB 144 wholesale

Brand Name : Finergy Tech

Model Number : 9BB 410W mono PERC half cell solar panel

Certification : CE, IEC61215, IEC61730, TUV, CQC

Place of Origin : WUXI, CHINA

MOQ : 132PCS

Price : 0.22~0.24 USD per watt

Payment Terms : T/T, L/C at sight, Western Union

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : 31PCS/pallet, 66PCS/stack

Solar Cell : 9BB mono PERC solar cell from Trina and TW Solar

Pattern : 144PCS of half cells 158.75*79.375mm connection

Selling Point : Stable power generation output even half panel shaded

Workmanship : Full production from automatic equipment and production line

Connection Type : IP68 rated split junction box with MC4 compatible connectors

Warranty : 12 years workmanship and 30 years power damping guarantee

Contact Now

FSM400~FSM410M72H (400W/405W/410W) MONO PERC 144 Half Cell PV Module

Electrical Characteristics under STC (Irradiance 1000W/m², Cell Tem. 25℃, AM 1.5)

Module Type	FSM400M72H	FSM405M72H	FSM410M72H
Maximum Power-Pmax (Wp)	400	405	410
Voltage at Maximum Power-Vmp (V)	41.7	42.0	42.3
Current at Maximum Power-Imp (A)	9.60	9.65	9.69
Open Circuit Voltage-Voc (V)	49.8	50.1	50.4
Short Circuit Voltage-Isc (A)	10.36	10.48	10.60
Module Efficiency-ηm (%)	19.9%	20.1%	20.4%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.350%/℃
Temperature Coefficients of Voc	-0.289%/℃
Temperature Coefficients of Isc	0.048%/℃

Mechanical Characteristics

Cell Type	G1 MONO PERC 158.75×79.375mm
No. of Cells	144 (2×72)
Dimension	2008×1002×35mm
Weight	22 Kg
Junction Box	IP68, 3*20A diodes
Output Cables	4.0mm², 500mm Length (Optional)
Connectors	MC4 compatible
Packing	31PCS/Pallet, 726PCS/40’HC

Product Key Features

Gallium doped monocrystalline solar cell adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.4%).
Mono PERC Half Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
Excellent Anti-PID performance guarantee limited power degradation for mass production.
High transmission low-iron tempered glass with new technology improves self clean ability, which dusts fall down with rain automatically.
Module power increas 5~10W with 9BB half cell design, lower LCOE and higher IRR.
Split junction box with separate connectors for easy installation.
Three channels of EL automatic detections and power test before packing.
Full production from automatic equipment and production line, which eliminates human errors and improves product quality.
MES system applied together with production line to ensure products information searchable and traceable.
12 years product material & craft warranty and 30 years linear power damping guarantee.

Who's FINERGY?

FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off of Delin Group. FINERGY launched 3 international certified workshops in the industrial park which produce both mono and poly crystalline solar panels. With the development of emerging market, we enlarged the capacity of solar panels production to 800MW per year.

FINERGY delivers proven solar performance to residential, commercial and utility scale power plant customers, which can get more profits from our collaborations.

Automatic Soldering

400w Folding Solar Panels For Camping 9BB 144

Automatic Transfer on Production Line

400w Folding Solar Panels For Camping 9BB 144

Project Integration with FINERGY products in 2020

400w Folding Solar Panels For Camping 9BB 144
