390W 360w Mono-Si Perc-5bb Self-Cleaning Pv Flexible Solar Panel 24v 72 Cell

Name: 390W 360w MonoSi Perc5bb SelfCleaning Pv Flexible Solar Panel 24v 72 Cell
Brand: Finergy Solar Tech
Price: 0.22 USD

China 390W 360w Mono-Si Perc-5bb Self-Cleaning Pv Flexible Solar Panel 24v 72 Cell wholesale

Brand Name : Finergy Solar Tech

Model Number : 390W mono PERC solar panel

Certification : CE, IEC61215, IEC61730, TUV, CQC

Place of Origin : WUXI, CHINA

MOQ : 136PCS

Price : 0.22~0.23 USD per watt

Payment Terms : T/T, L/C at sight, Western Union

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : 31PCS/pallet, 68PCS/stack

Solar Cell : 5 busbar mono PERC cell from gallium doped wafer

Craft : Solar cells laminated with glass, EVA and backsheet

Selling Point : MC4 compatible connectors for easy connection

Manufacturing : Full production from automatic equipment and production line

Features : Available for both DC and AC solar power systems

Warranty : 30 years no less than 80% output power

Contact Now

FSM380~FSM390M72L (380W/385W/390W) 72 Cells Typical Mono PERC Solar Panels

Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)

Module Type	FSM380M72L	FSM385M72L	FSM390M72L
Maximum Power-Pmax (Wp)	380	385	390
Voltage at Maximum Power-Vmp (V)	40.6	40.9	41.2
Current at Maximum Power-Imp (A)	9.36	9.42	9.47
Open Circuit Voltage-Voc (V)	49.0	49.2	49.4
Short Circuit Voltage-Isc (A)	9.72	9.90	10.10
Module Efficiency-ηm (%)	19.2%	19.4%	19.7%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.40%/℃
Temperature Coefficients of Voc	-0.31%/℃
Temperature Coefficients of Isc	0.04%/℃

Mechanical Characteristics

Cell Type	5BB MONO PERC 158.75×158.75mm
No. of Cells	72 (6×12)
Dimension	1979×1002×35mm
Weight	21 Kg
Junction Box	IP68, 3*20A diodes
Output Cables	4.0mm², 1100mm Length (Optional)
Connectors	MC4 compatible
Packing	31PCS/Pallet, 726PCS/40’HC

Key Features

Gallium doped mono wafer adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.2%).
Excellent Anti-PID performance guarantee limited power degradation for mass production.
High transmittance low-iron tempered glass and cell surface textured design ensure excellent performance in low-light environment.
Certified to withstand: front side max. 5400Pa, rear side max. 2400Pa.
Typical design with excellent electrical performance available for both 24/48V DC and 1000/1500V AC solar power systems.
IP68 rated junction box with schottky diodes to protect the whole PV system damage.
MC4 compatiable connectors for solar system easy installation.
Three times EL inspections and power test before packing.
Each production process from automatic equipment and production line following with IEC61215 and IEC61730 standards.
MES system applied together with automatic production line to ensure each product data searchable and traceable.
15 years product workmanship warranty and 30 years linear power damping warranty.

Who we are?

FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off of Delin Group. FINERGY launched 3 international certified workshops in the industrial park which produce both mono and poly crystalline solar panels. With the development of emerging market, we enlarged the capacity of solar panels production to 800MW per year.

FINERGY delivers proven solar performance to residential, commercial and utility scale power plant customers, which can get more profits from our collaboration.

FINERGY provides high efficiency solar panels and systems which can generate more energy per unit area.

Automatic Equipment

390W 360w Mono-Si Perc-5bb Self-Cleaning Pv Flexible Solar Panel 24v 72 Cell

Advanced Production Line

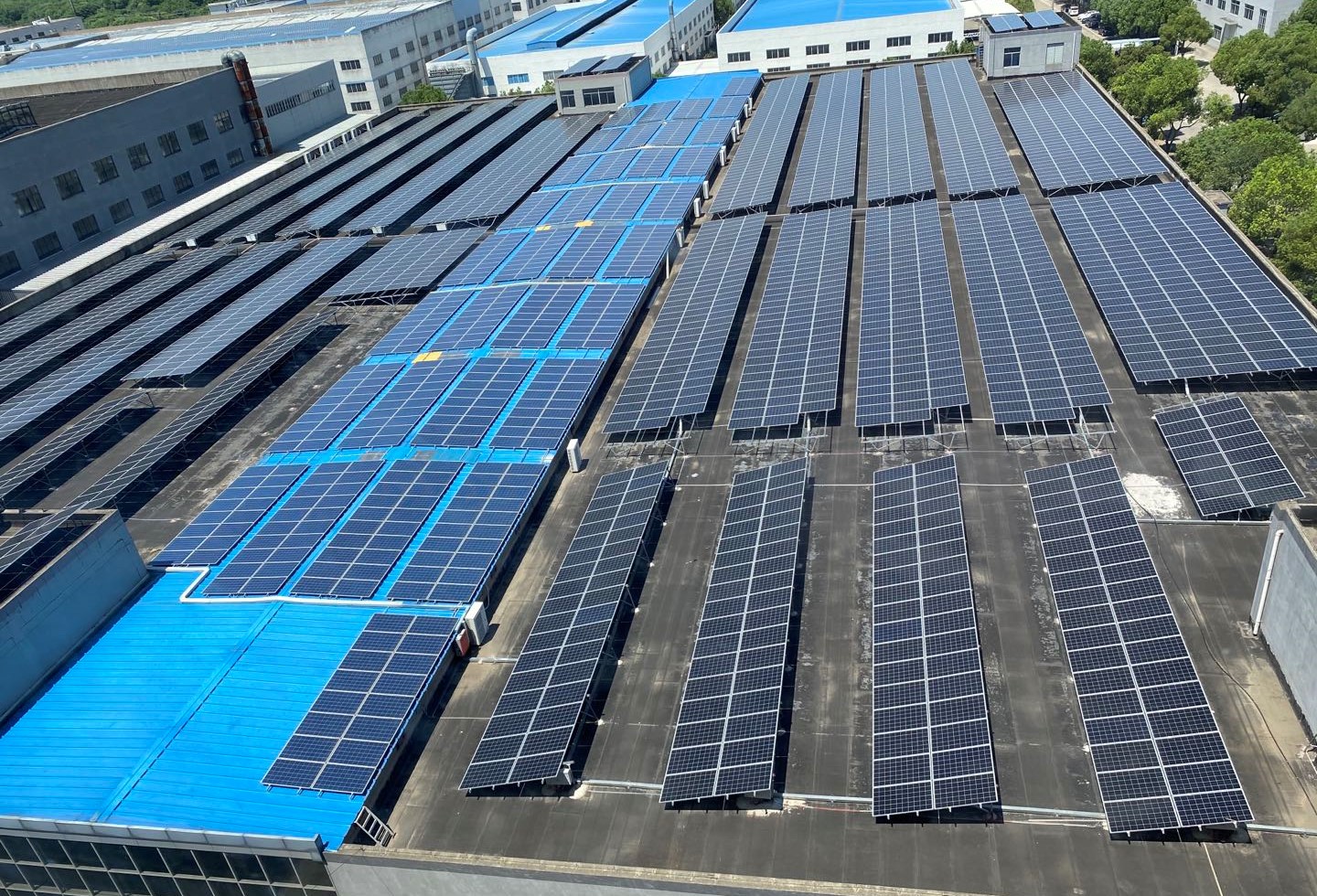

Roof Project Reference on FINERGY Workshop

390W 360w Mono-Si Perc-5bb Self-Cleaning Pv Flexible Solar Panel 24v 72 Cell
