275W 280W 285W Mono And Polycrystalline Solar Panel 1000V 1500V DC IEC

Product Categories

wuxi finergy tech co,.ltd

Contact Now

Name: 275W 280W 285W Mono And Polycrystalline Solar Panel 1000V 1500V DC IEC
Brand: Finergy Tech
Price: 0.195 USD

Brand Name : Finergy Tech

Model Number : FSM280P660

Certification : CE, IEC61215, IEC61730, TUV, CEC

Place of Origin : CHINA

MOQ : 100PCS

Price : 0.195~0.20 USD per watt

Payment Terms : T/T, L/C

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : Standard Plywood Packing

Power Range : 275W~285W

Module Size : 1640*992*35mm

Backsheet : White or Black

Cell Color : Dark Blue

OEM/ODM : Available

Warranty : 25 years

Contact Now

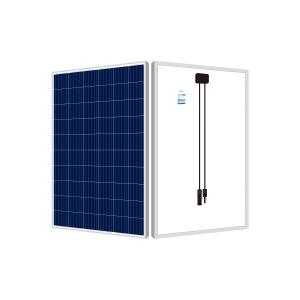

FSM275~FSM285P660 (275W/280W/285W) Standard Poly-Crystalline PV Module

KEY FEATURES

5 Busbar Poly-Crystalline Solar Cell adopts new technology to guarantee higher output power and higher module efficiency.
Excellent Anti-PID performance guarantee limited power degradation for mass production.
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
High salt mist and ammonia resistance certified by TUV SGS
Separate trackable barcode on each product for quality tracing.
100% EL inspection and power test before packing
12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type	FSM275P660	FSM280P660	FSM285P660
Maximum Power-Pmax (Wp)	275	280	285
Voltage at Maximum Power-Vmp (V)	31.5	31.8	32.2
Current at Maximum Power-Imp (A)	8.73	8.81	8.86
Open Circuit Voltage-Voc (V)	38.3	38.5	38.9
Short Circuit Voltage-Isc (A)	9.17	9.23	9.28
Module Efficiency-ηm (%)	16.9%	17.2%	17.5%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.40%/℃
Temperature Coefficients of Voc	-0.31%/℃
Temperature Coefficients of Isc	0.04%/℃

Mechanical Characteristics

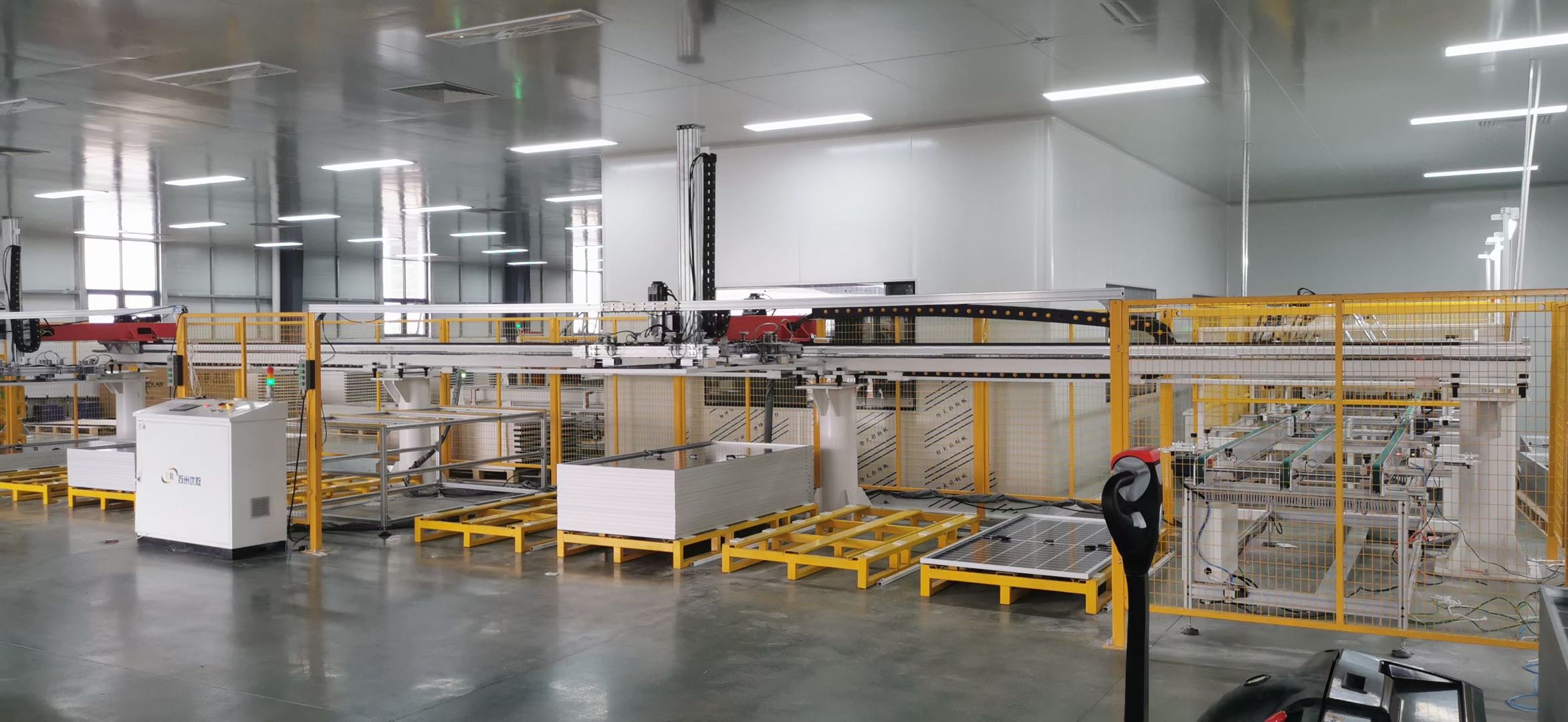

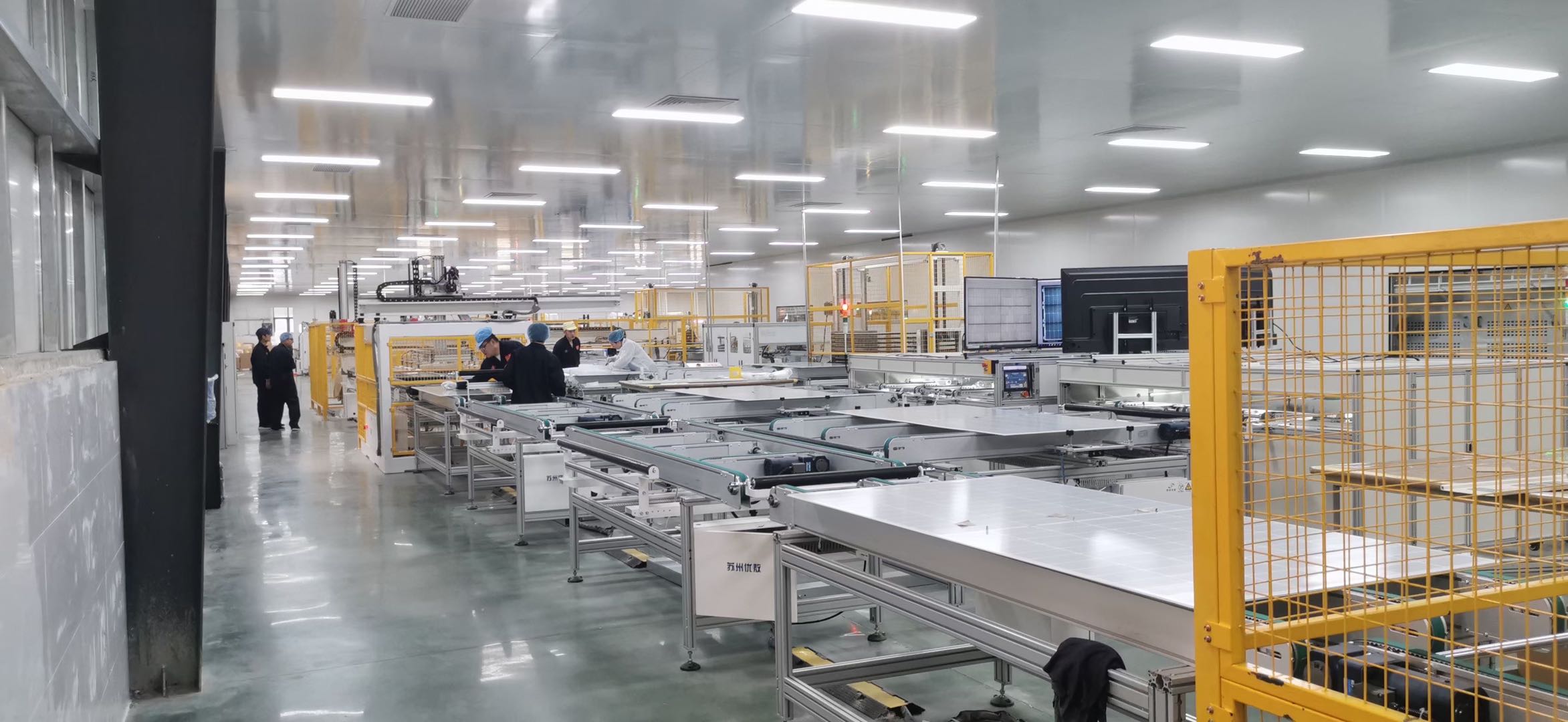

Production Plant

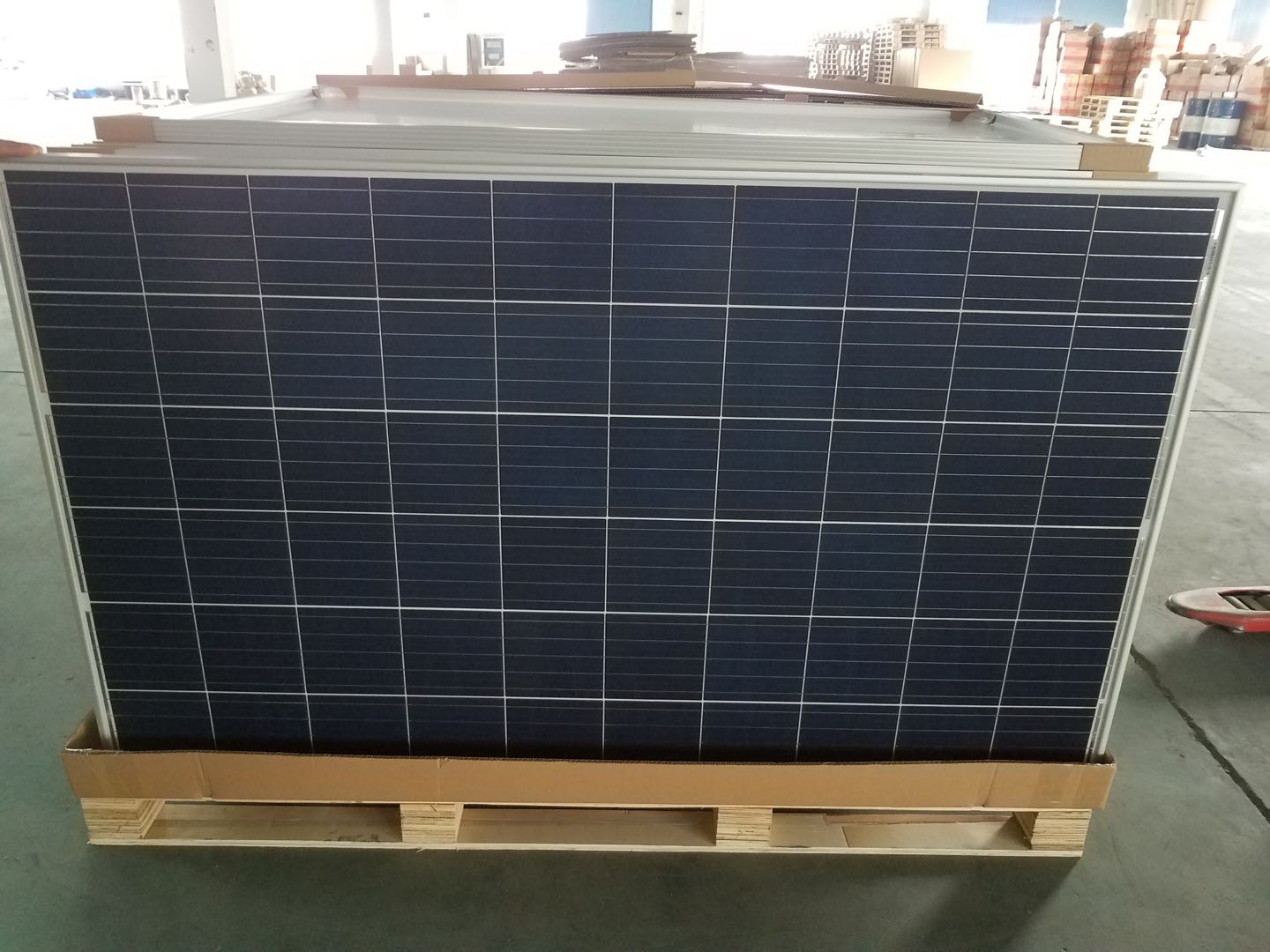

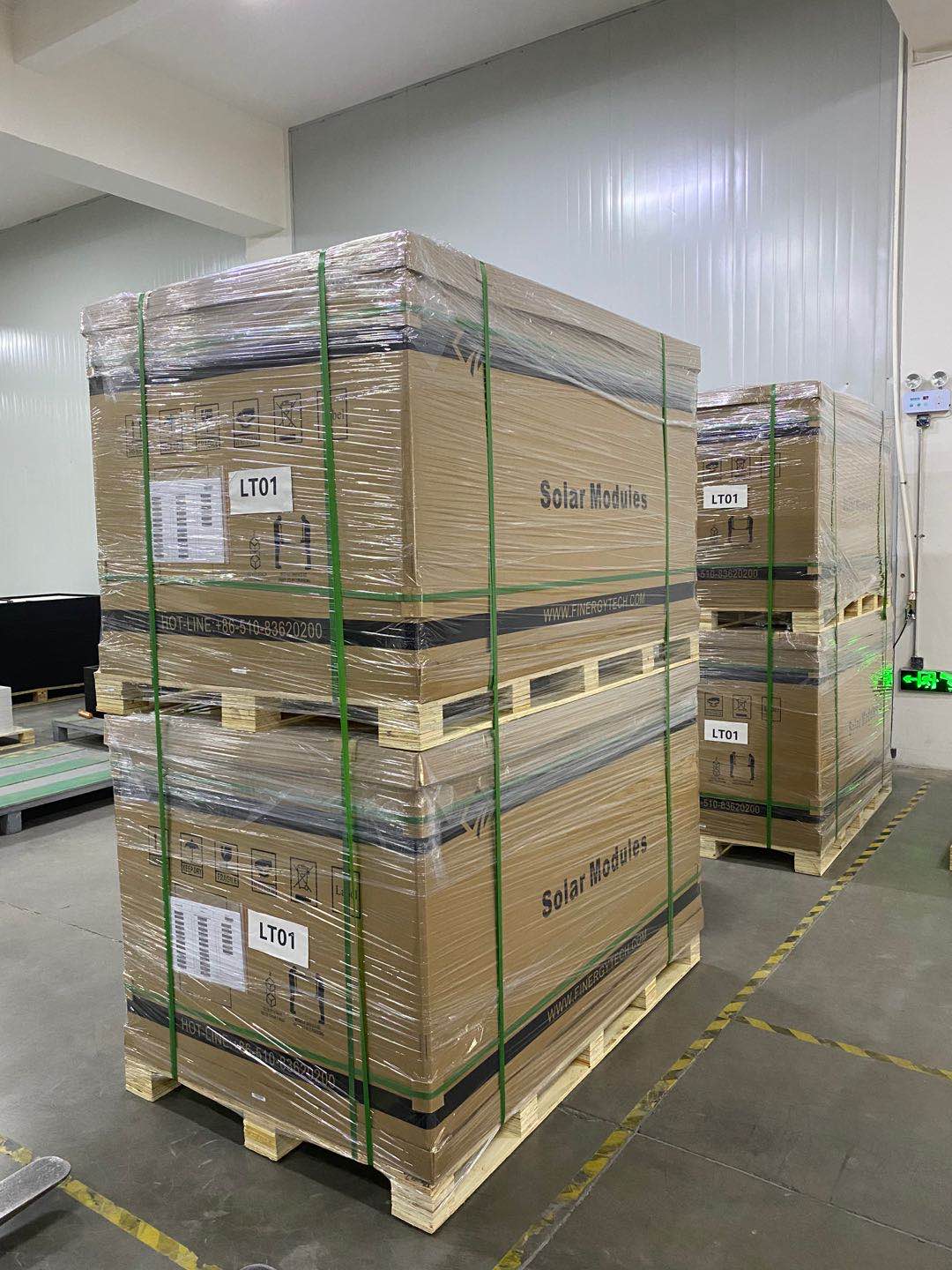

Products Packing

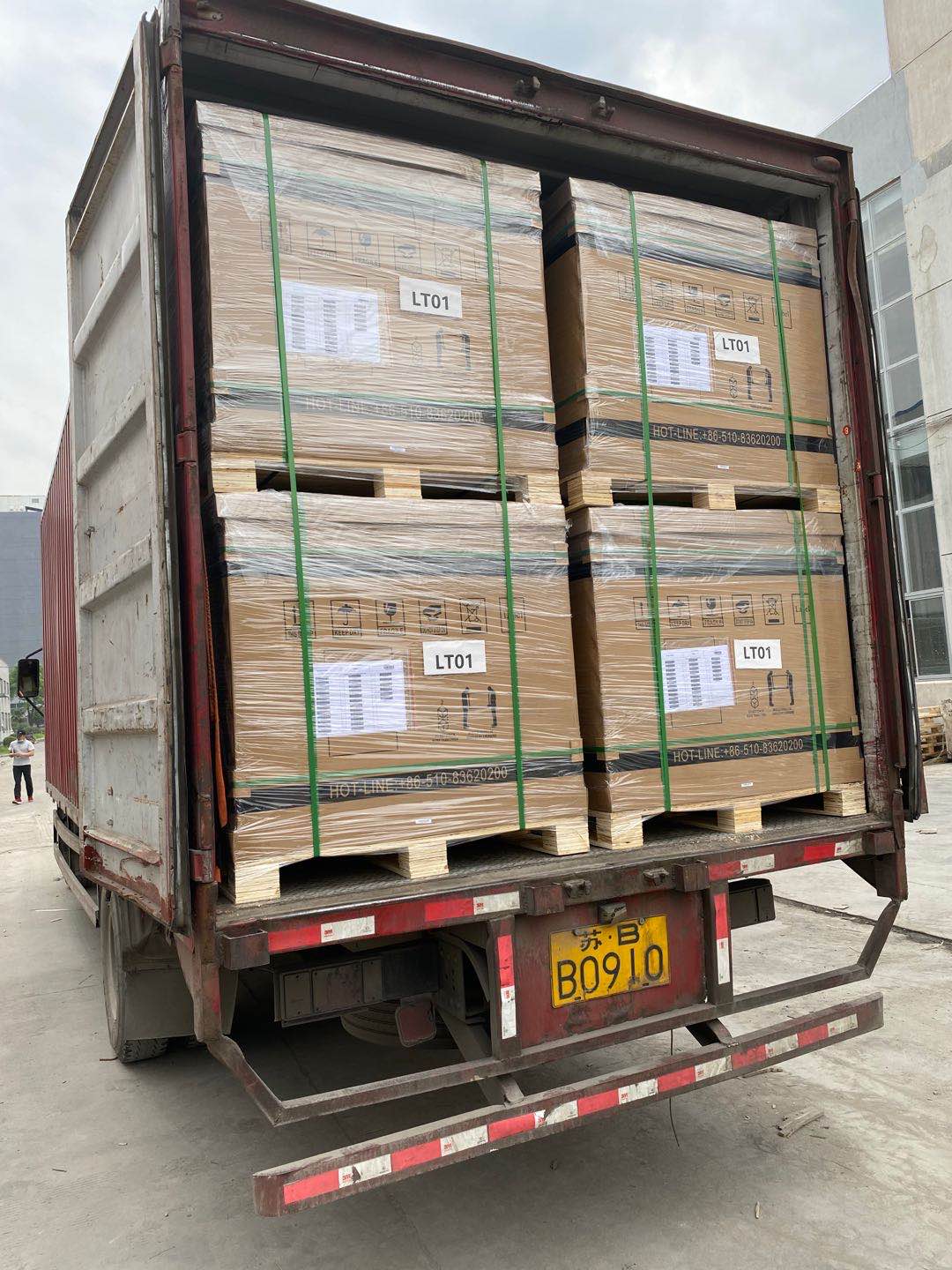

Container Loading and Shipment

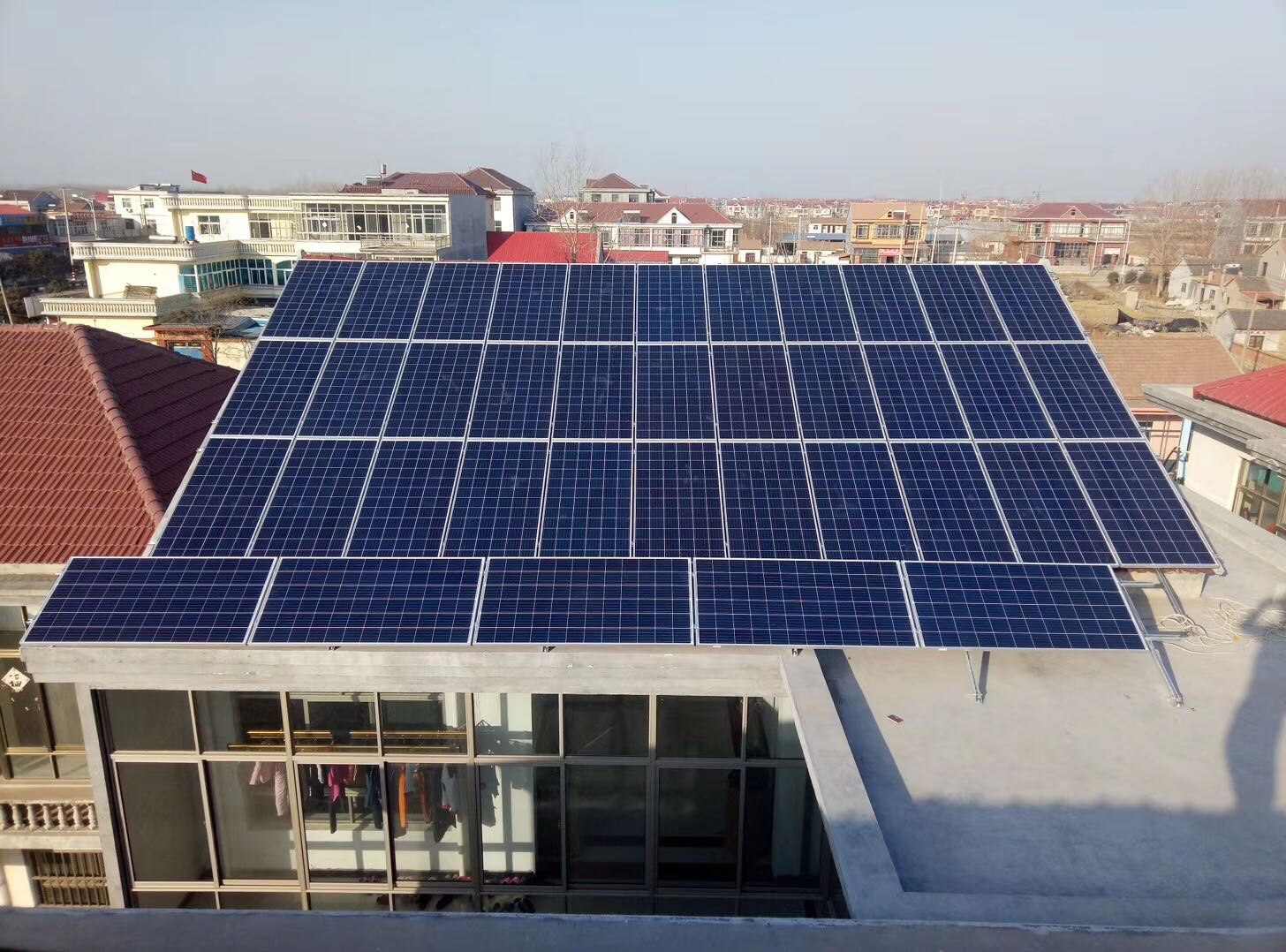

Projects
