36V 340W 335 Watt Poly Solar Module Polycrystalline Silicon Cell

Name: 36V 340W 335 Watt Poly Solar Module Polycrystalline Silicon Cell
Brand: Finergy Tech
Price: 0.195 USD

China 36V 340W 335 Watt Poly Solar Module Polycrystalline Silicon Cell wholesale

Brand Name : Finergy Tech

Model Number : 340W Polycrystalline PV Module

Certification : CE, IEC61215, IEC61730, TUV, CEC

Place of Origin : CHINA

MOQ : 100PCS

Price : 0.195~0.20 USD per watt

Payment Terms : T/T, L/C

Supply Ability : 10MW per month

Delivery Time : 10 work days

Packaging Details : Standard Plywood Packing

Cell From : JA, Yingli, Jinko, Tongwei

Technology : 5BB 158.75mm black-si poly

OEM/ ODM : Avaialble

System Voltage : 12/24V DC or 1000/1500V AC

Warranty : 12 years + 25 years

Advantages : Low linear power attenuation and low price

Contact Now

FSM330~FSM340P672 (330W/335W/340W) Standard Poly-Crystalline PV Module

KEY FEATURES

5BB Poly-Crystalline Solar Cell adopts new technology to guarantee higher output power and higher module efficiency.
Excellent Anti-PID performance guarantee limited power degradation for mass production.
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
High salt mist and ammonia resistance certified by TUV
Three channels of EL automatic detections and power test before packing
Barcode, material and parameter binding data traceable, searchable and freezing
12 years product warranty and 25 years linear power warranty

Electrical Characteristics under STC

Module Type	FSM330P672	FSM335P672	FSM340P672
Maximum Power-Pmax (Wp)	330	335	340
Voltage at Maximum Power-Vmp (V)	37.7	37.9	38.1
Current at Maximum Power-Imp (A)	8.75	8.86	8.92
Open Circuit Voltage-Voc (V)	46.3	46.5	46.6
Short Circuit Voltage-Isc (A)	9.45	9.55	9.64
Module Efficiency-ηm (%)	17.0%	17.3%	17.5%
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000V/1500V DC (IEC)
Power Tolerance	0~+4.99W
Temperature Coefficients of Pmax	-0.40%/℃
Temperature Coefficients of Voc	-0.31%/℃
Temperature Coefficients of Isc	0.04%/℃

Mechanical Characteristics

Cell Type	5BB Polycrystalline 158.75×158.75mm
Number of Cells	72 (6×12)
Dimension	1979×1002×35mm
Weight	22 Kg
Junction Box	IP68, 3 diodes
Output Cables	4.0mm², 1000mm Length
Connectors	MC4 compatible
Packing	33PCS/Pallet, 726PCS/40’HC

FAQ of Solar Panels

Q1: Because polycrystalline is low efficiency, is it low quality?

A: It's the truth that polycrystalline is lower efficiency than monocrystalline. They're different products with different silicon materials, but not low quality.

Q2: What're the advantages of polycrystalline solar panels?

A: Polycrystalline is much cheaper than monocrystalline solar panels. Some large scale solar power plants were installed with polcrystalline solar panels to save inverstments for owners. Polycrystalline solar panels are also very popular for poors who're interested in solar power. Besides this, the annual power loss of polycrystalline solar panels is stable and small.

Q3: Where is most suitable for polycrystalline?

A: Polycrystalline is more suitable to install in where has good sun irrdiation. The polycrystalline solar panels can work long time every day. If the space/land for solar power plants construction is cheap to rent, it's more competitive to install with polycrystalline solar panels.

Automated Production Display

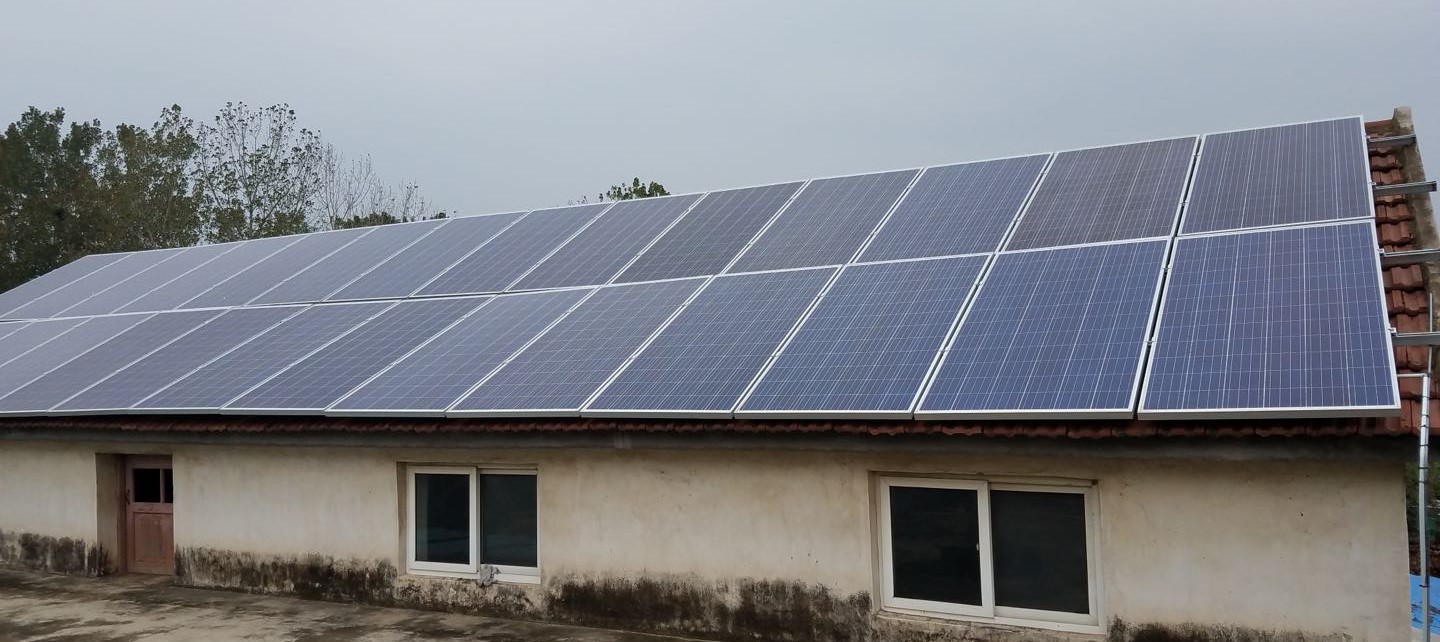

Cases
